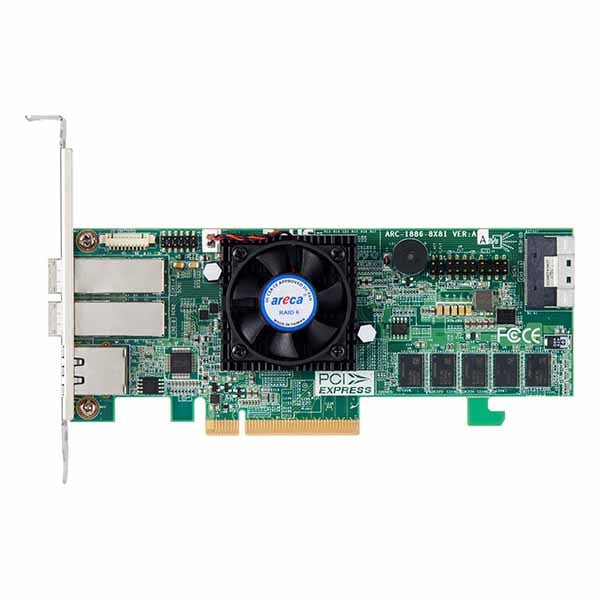

16 Ports PCIe Gen 4.0 Tri-Mode RAID Adapters
[仕様]
| Host Bus Interface | 8-Lane PCI Express 4.0 |
| Physical Dimensions | LP-MD2: 167.65(L) x 64.41(H) mm |
| Ports | 16 x internal |
| Drive Connectors | 2 x SFF-8654 [x8] |
| RAID-on-Chip Controller | Tri-mode Dual Core ARM A15 1.6GHz ROC |
| Cache Memory | 8GB on-board DDR4-2666 SDRAM with ECC Protection |
| Data Transfer Rate | Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port |
| Drive Support | Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs, using 12Gb/s SAS expander Up 32 NVMe drives through the PCIe switches |
| Power Consumption | Approximately 14 Watts |
| Operating Temperature | 0 °C to 60 °C |
| Operating Humidity | 10% to 85%, non-condensing |
| Operating Systems | Microsoft Windows Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux FreeBSD XenServer unRAID macOS VMware ESXi |
JAN：4537694297707
