4X4 BOX-7735U/D5
[特徴]
・AMD Ryzen™ 7000U-Series 7735U
・2 x 262-pin SO-DIMM DDR5 4800MHz up to 64GB (32GB per DIMM)
・2 x USB4, 1 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module), 1 x SATA3
・1 x Realtek 1 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
・Supports Quad display, 1 x HDMI 2.1, 3 x DP 1.4a (2 from Type-C)
・TPM 2.0 onboard IC
・19V/120W Power Adapter
・117.5 x 110.0 x 47.85mm(4.63″ x 4.33″ x 1.88″), Fanned Barebone
[仕様]
Processor System
| CPU | AMD Ryzen™ 7000U-Series 4X4 BOX-7735U/D5 (AMD Ryzen™ 7 7735U, 8Cores, Max Speed up to 4.75GHz) |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | 117.5 x 110.0 x 47.85mm |
|---|
Memory
| Technology | Dual Channel DDR5 4800 MHz |
|---|---|
| Capacity | 64 GB (32 GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
Graphics
| Controller | AMD Radeon™ Graphics |
|---|---|
| HDMI | HDMI 2.1 Max resolution up to 7680 x 4320@60Hz |
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096×2160@60Hz |
| MultiDisplay | Max 4 display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2/WLAN | 1 x Wi-Fi 6E 802.11ax + BT 5.2 |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8111FPV with 10/100/1000 Mbps,support DASH function |
|---|---|
| Connector | 2 x RJ-45 |

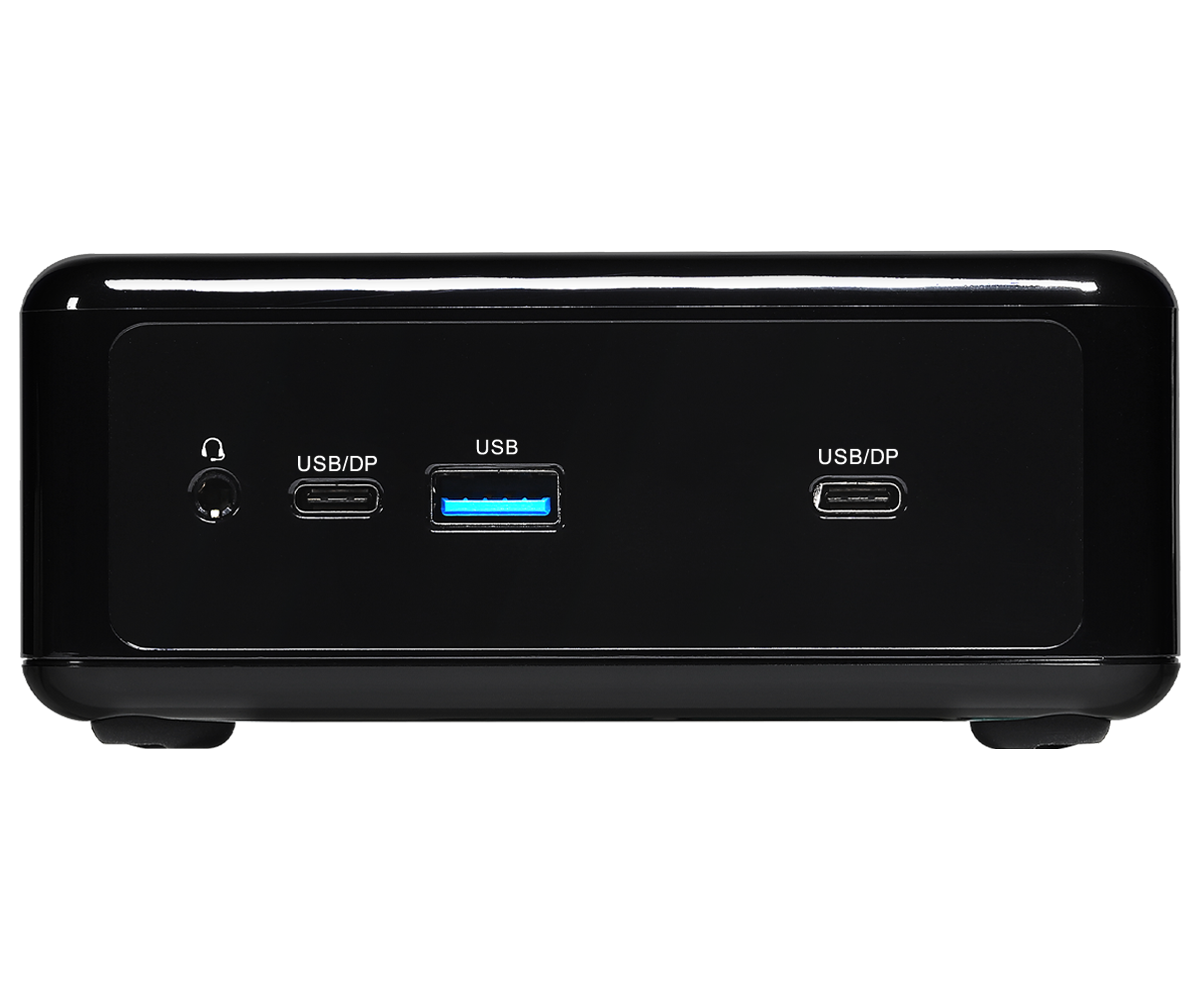

Front I/O
| USB | 1 x USB 3.2 Gen2 (Type-A) 2 x USB4 (Supports DP1.4a display output) |
|---|---|
| Audio | 1 (headphone & microphone jack) |

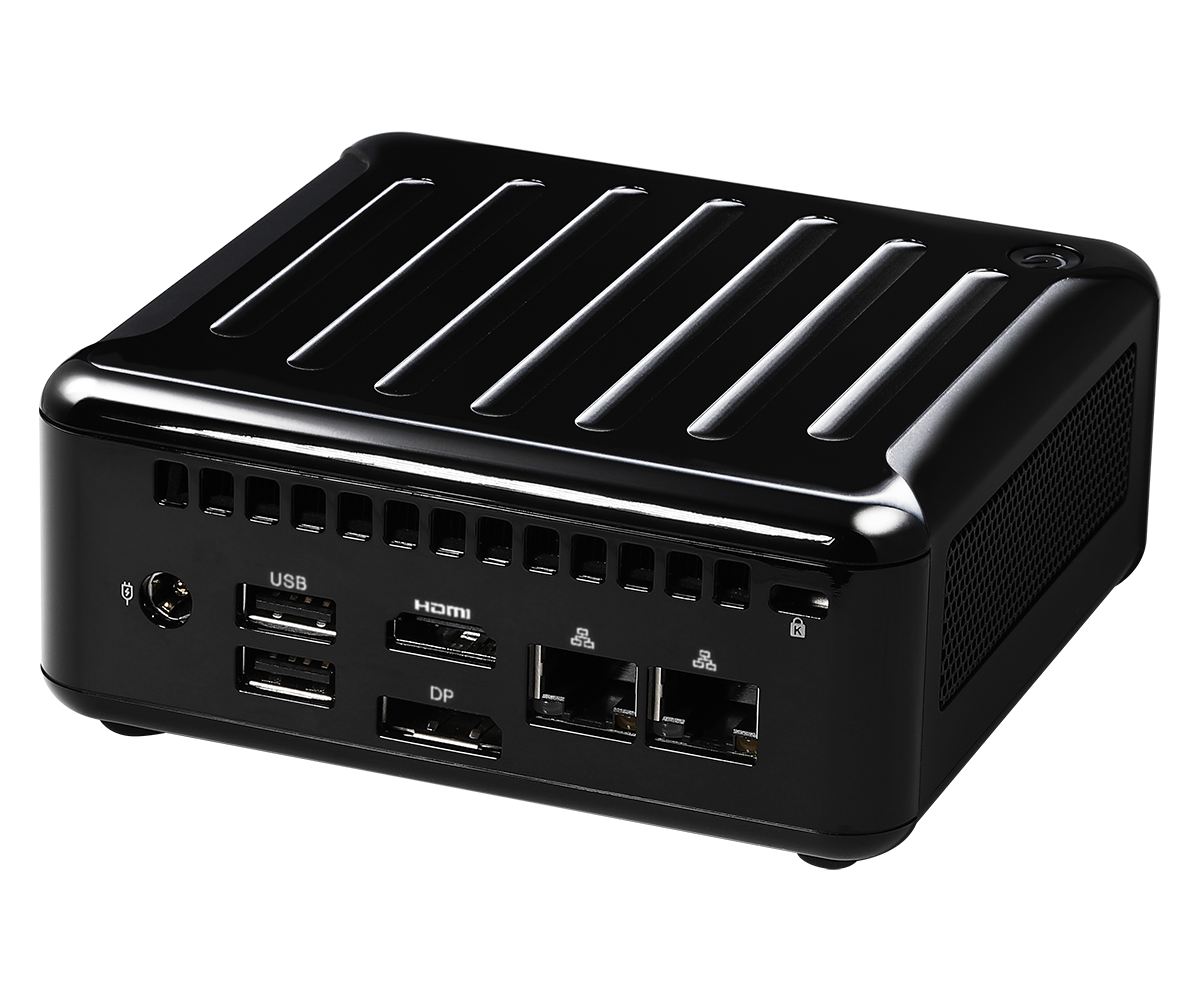

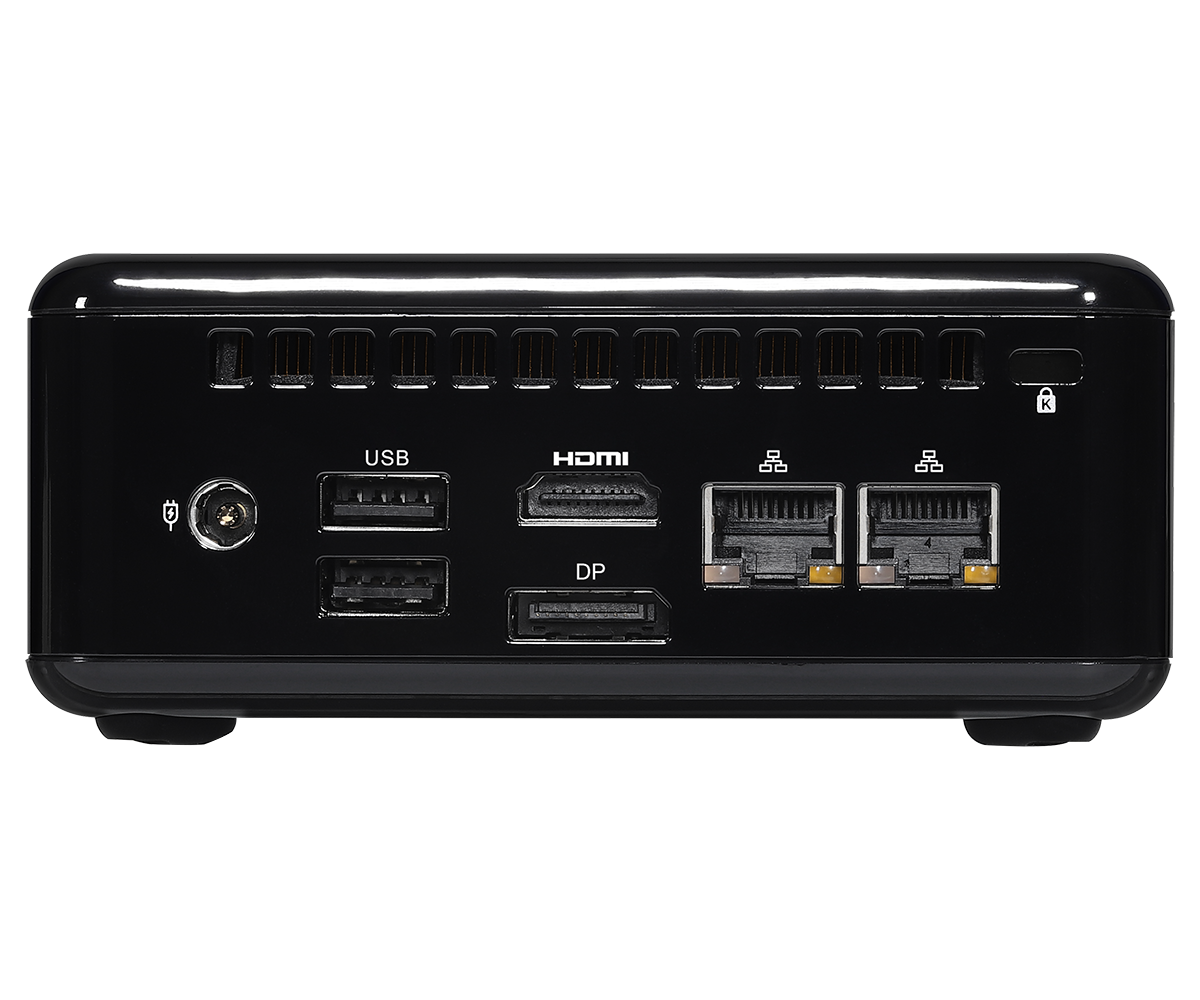

Rear I/O
| HDMI | 1 x HDMI 2.1 |
|---|---|
| DisplayPort | 1 x DP 1.4a |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 |
| DC Jack | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments 0,1,2….255sec |
Power Requirements
| Input PWR | 12V~19V DC-In Jack |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 40ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Mechanical
| Mounting | VESA mount |
|---|---|
| Dimensions (L x W x H) | 117.5 x 110.0 x 47.85mm(4.63″ x 4.33″ x 1.88″) |
| Weight | Net Weight: 1kg |
Others
| OS Support | Windows 10/11 |
|---|---|
| Certifications | CE, FCC |
| Packing List | 19V/120W Power Adapter (R7 7735U) 1 x VESA mount bracket |
| TPM | TPM 2.0 onboard IC |
JAN：4711420961678
