NUC BOX-1260P
[特徴]
・Intel® 12th Gen (Alder Lake-P) Core™ Processors i7-1260P
・2 x 260-pin SO-DIMM DDR4 3200MHz up to 64GB (32GB per DIMM)
・1 x USB4/Thunderbolt™4, 4 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E), 1 x SATA3
・2 x Intel 2.5 Gigabit LAN
・Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a(2 from Type C)
・TPM 2.0 onboard IC
・Supports Intel® vPro
・19V/90W Power Adapter
・117.5 x 110.0 x 47.85mm(4.63″ x 4.33″ x 1.88″), Fanned Barebone
[仕様]
Processor System
| CPU | Intel® 12th Gen (Alder Lake-P) Core™ Processors NUC BOX-1260P( i7-1260P, 4P+8E) |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® Iris® Xe Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096×2160@60Hz |
| DisplayPort | DisplayPort 1.4, DP++ Max resolution up to 4096×2160@60Hz |
| MultiDisplay | Quad-Display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2/WLAN | 1 x Wi-Fi 6E 802.11ax + BT 5.3 |
|---|
Audio
| Interface | Realtek ALC233/ALC256, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

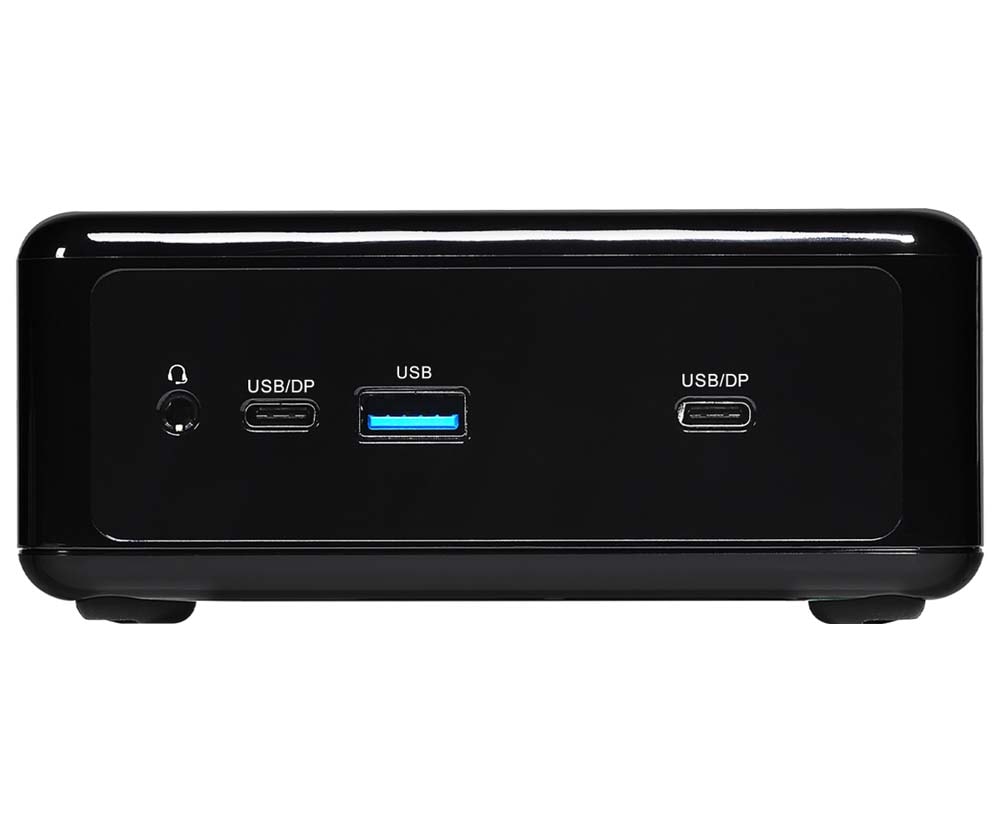

Front I/O
| USB | 1 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (supports DP 1.4a display output) 1 x USB 3.2 Gen2 (Type-C, supports DP 1.4a display output) *For Thunderbolt support, please refer to support list. |
|---|---|
| Audio | 1 (headphone & microphone jack) |

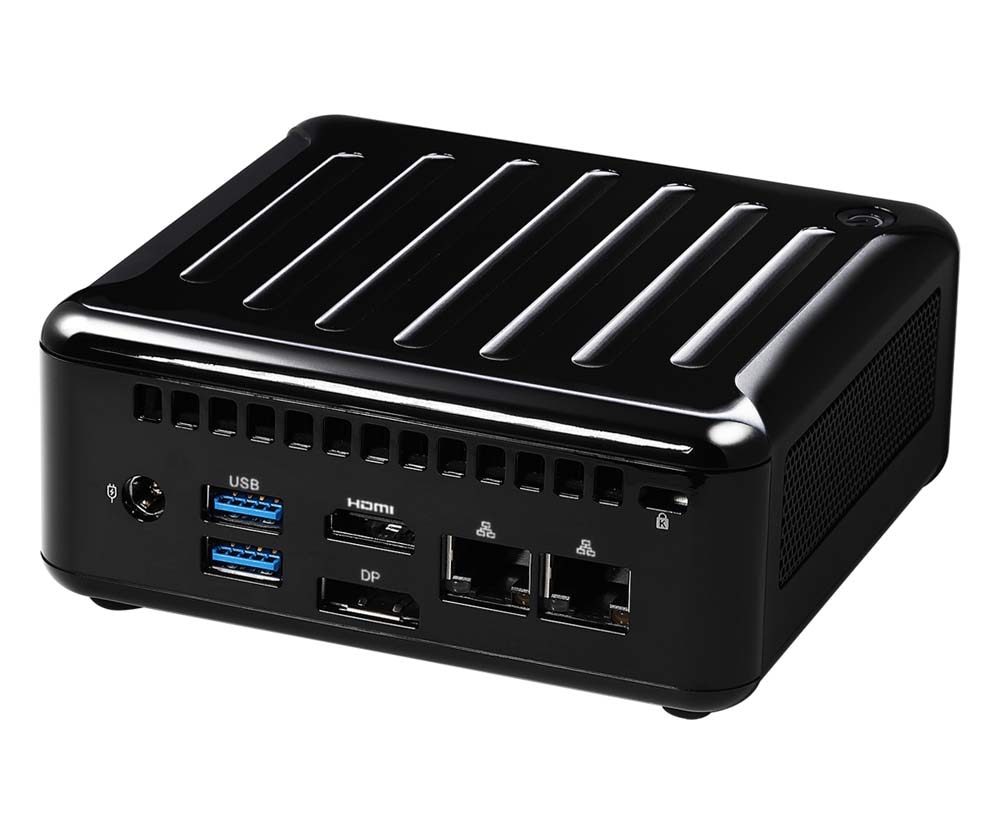

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 1 x DP 1.4a |
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type-A) |
| DC Jack | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, …255sec |
Power Requirements
| Input PWR | 12V~19V DC-In Jack |
|---|---|
| Power On | AT/ATX Supported – AT : Directly PWR on as power input ready – ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 40ºC |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Mechanical
| Mounting | VESA mount |
|---|---|
| Dimensions (L x W x H) | 117.5 x 110.0 x 47.85mm (4.63″ x 4.33″ x 1.88″) |
| Weight | Net Weight:1.0Kg |
Others
| OS Support | Windows 10/11 |
|---|---|
| TPM | TPM 2.0 onboard IC |
| Certifications | CE, FCC |
| Packing List | 1 x 19V/90W Power Adapter 1 x VESA mount bracket |
JAN：4711420961593
