1U10E-ROME/2T
[特徴]
・1U chassis support 10 x 2.5” HDD Hot-Sap Bay with NVMe or SATA and 750W 1+1 Redundant PSU
・Supports AMD EPYC 7003 and 7002 series Processors
・Supports Eight Channels DDR4 3200/2933/2666/2400 RDIMM/LR DIMM
・Supports 2 x 10G Base-T by Intel X550
・Supports 1 PCIe4.0 x16
・Supports OCP2 mezzanine type A/B
[仕様]
| System | Form Factor： – 1U Rackmount Chassis Model： – 1U10E-ROME/2T Dimensions： – 625 mm X 430 mm X 43.5 mm Support MB： – ATX, 12”x9.6” (ROMED8QM-2T) |
| Front Panel | Buttons： – Power Button - Reset Button - NMI Button LEDs： – POWER LED - LAN1 LED - LAN2 LED I/O Ports： – 1 x USB 3.0 port |
| External Drive Bay / Storage | Front Side Drive Bay： – 10 Bay 2.5” SATA (6Gb/s) or NVMe (8Gb/s) Drives Front Side Backplane： – backplane with 10 SATA or NVMe ports |
| Power Supply | Type： – 1U Output Watts： – 2(1+1) 750W Redundant |
| System Fan | Fan： – 4056 mm Fan x 6 |
| Riser card Support | Riser card Type： – 1 x Symmetry Riser card(X16/x16) support 1 x PCIE card |
| Physical Status | Form Factor： – ATX Dimensions： – 12”x9.6” |
| Processor System | CPU： – Supports AMD EPYC 7003* and 7002 Series Processors *A BIOS update is required to support AMD EPYC 7003 Series Processors. Please contact ASRock Rack Technical Support for the necessary firmwares. Socket： – Single Socket SP3 (LGA4094) Chipset： – N/A |
| System Memory | Capacity： – 8 DIMM slots; 8 Channels DDR4 memory technology - RDIMM : 32GB, 16GB, 8GB - LRDIMM : 128GB, 64GB Type： – 8 Channels DDR4 memory technology - Support DDR4 3200/2933/2666/2400 RDIMM, and LRDIMM Voltage： – 1.2V |
| Expansion Slot | PCIe x 16： – SLOT6: PCIe4.0 x16 Mezzanine slot： -1 x OCP mezzanine A/B |
| Storage | SATA Controller： – 4x SATA3 6.0 Gb/s (from1 x mini SAS HD) Slimline for U.2： - CPU1 X8(SATA Gen3 x 8 or PCIe Gen3 x4 *2) - CPU1 X8(SATA Gen3 x 8 or PCIe Gen3 x4 *2) - CPU1 X8 (NVME only) - CPU1 X8 (NVME only) - CPU1 X8 (NVME only) - CPU1 X8(SATA Gen3 x 8 or PCIe Gen3 x4 *2) - CPU1 X8 (NVME only) M.2 slot： – 1 (M.2_2: 22110, SATA and PCIe colay(SATA/PCIe x4)) |
| Ethernet | Interface： – 10G by Intel X550 LAN Controller： – 2 x 10G base-T by Intel x550 - 1 x RJ45 Dedicated IPMI LAN port by RTL8211E |
| Management | BMC Controller： – ASPEED AST2500 IPMI Dedicated GLAN： – 1 x Realtek RTL8211E for dedicated management GLAN Features： – Watch Dog - NMI |
| Graphics | Controller： – ASPEED AST2500 VRAM： – DDR4 256Mb |

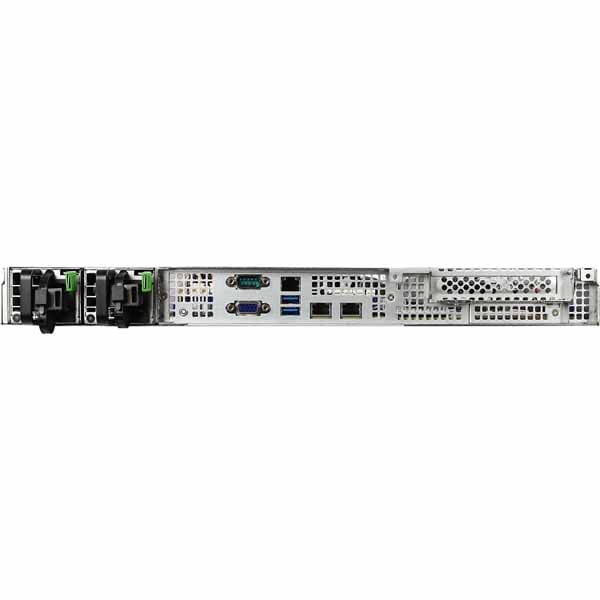

| Rear Panel I/O | VGA Port： – 1 x D-Sub USB 3.2 Gen1 Port： – 2 Lan Port： – 2 x 10G Base-T - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port： – 1 x COM port UID Button/UID LED： – 1 |
| Internal Connector | SATA DOM： – 1 M.2 - 1 (M.2:22110 ; SATA and PCIe colay(SATA/PCIe x4)) OCuLink： – 0 TR1 Header： – 1 TPM Header： – 1 IPMB Header： – 1 Buzzer： – 1 Fan Header： – 6x system Fan (4 front, 2 rear) ATX Power： – 1x (24-pin) + 1x (8-pin) USB 3.2 (Gen1) Header： – 1 ( support 2 ports USB 3.0) Front Panel： – 1 |
| System BIOS | BIOS Type： – 32MB AMI UEFI Legal BIOS BIOS Features： – Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash |
| Hardware Monitor | Temperature： – CPU Temperature Sensing - MB_A/MB_B/X550/Card side Temperature Sensing Fan： – CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control Voltage： – Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Environment | Temperature： Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
JAN：4537694295390
