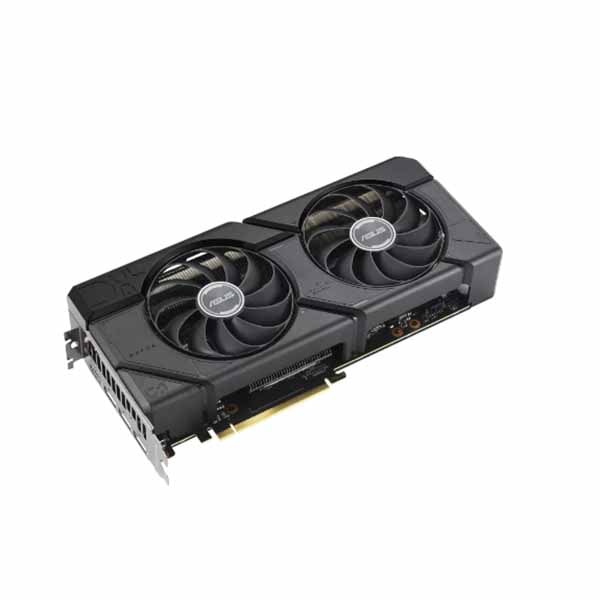

ASUS Dual Radeon™ RX 7800 XT OC Edition 16GB GDDR6
高フレームレートと滑らかな動きを実現するASUS Dual Radeon™ RX 7800 XT OC Edition 16GB GDDR6
[特徴]
・OCモード: 最大2520MHz (ブーストクロック)/最大2213MHz (ゲームクロック)
・デュアルボールファンベアリングは従来設計に比べ最大2倍長持ち
・Auto-Extreme精密自動製造により高い信頼性を実現
・保護バックプレートがPCBの屈曲やトレースによる損傷を防ぐ
・GPU Tweak IIIは、直感的なパフォーマンス調整、温度制御、システム監視を提供
[仕様]
| グラフィックスエンジン | AMD Radeon™ RX 7800 XT |
| バスインターフェース | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| ビデオメモリ | 16GB GDDR6 |
| コアクロック | OC mode : up to 2520 MHz (Boost Clock)/up to 2213 MHz (Game Clock) Default mode : up to 2475 MHz (Boost Clock)/up to 2169 MHz (Game Clock) |
| Stream Processors | 3840 |
| メモリスピード | 19.5 Gbps |
| メモリインターフェース | 256-bit |
| 解像度 | Digital Max Resolution 7680 x 4320 |
| インターフェース | Yes x 1 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 2.1) HDCP(2.3)対応 |
| 最大ディスプレイサポート | 4 |
| アクセサリ | 1 x Thank you card 1 x Speedsetup Manual |
| ソフトウェア | ASUS GPU Tweak III & Drivers: please download all software from the support site. |
| サイズ | 279.9 x 133.9 x 49.3 mm 11.02 x 5.27 x 1.94 inch |
| 推奨PSU | 750W |
| 電源コネクタ | 2 x 8-pin |
| Slot | 2.47 slot |
| その他 | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. * ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. * ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. * If two DisplayPort 2.1 monitors are connected, a third monitor will be limited to DisplayPort 1.4 functionality. |
JAN：197105436169
