[特徴]
・VC520Pro2でテレビ会議システム専用機の品質でWeb会議を行えます。
・専用機のカメラをそのままWebカメラにした高画質な光学12倍ズームカメラを採用。
・双方の音声をよりクリアに伝えるスピーカーフォンが付属。
・カメラもマイクもスピーカーも全てUSBケーブル1本で簡単接続。ノートPCを持ち込んでUSB接続するだけで準備完了。
・Web会議マイクでトップクラスの拡張性。スピーカーフォンのみ最大3台。付属のスピーカーフォン1台にマイクを最大4台。用途に合わせた2つの拡張タイプで小～大まであらゆる規模の会議室に対応可能。
[仕様]
| Camera | ・Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions ・Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps ・SmartFrame for automatic FOV adjustment to fit all participants ・Innovative Preset Framing: Follow presenter based on preset areas ・True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions ・Zoom: 18X total zoom (12X optical zoom) ・Field of view(D/H/V): 84.5°/76°/48° ・Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele) ・Lens F#: 1.8 (wide) ~ 2.8 (tele) ・Mirror, Flip, AE, white balance: auto, manual override via PTZApp 2 ・Minimum focus distance: 1.5 m ・Standard tripod screw holes and Kensington slot ・People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage |
| Motorized Pan & Tilt Movement | ・Pan: ±170° ・Tilt: +90° (up) -30° (down) ・10 camera presets (via remote control) ・Fast and quiet pan & tilt movement |
| Video Format | ・YUV, YUY2, MJPEG, NV12 ・Network video compression format: H.264 ・Network protocols: RTSP, RTMP |

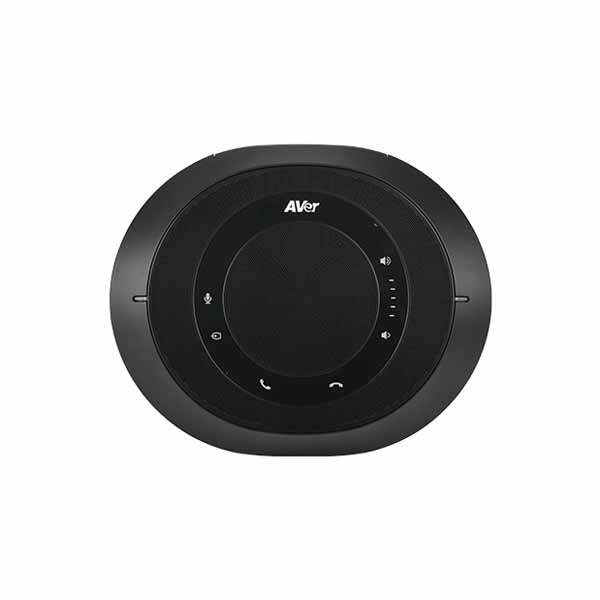

| Speakerphone | ・Full duplex microphone array with echo cancellation ・Advanced noise suppression ・Dual-omnidirectional microphone array ・3.5 mm phone-in jack ・3.5 mm line out ・Speaker: 6W, Adjustable to 90dB SPL at 0.5 m ・Touch controls for volume down/up, mute, phone input, call, and hang-up ・Bridge phone-in and USB into one call ・Security: Kensington slot |
| Audio Format | ・AAC-LC ・Network protocol: RTSP, RTMP |
| Connectivity | ・12V/5A power adaptor ・Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain) ・USB 3.1 Type-B connector ・IP (RJ45) |
| Environmental Data | ・Operation temperature: 0°C ~ 40°C ・Operation humidity: 20% ~ 80% ・Storage temperature: -20°C ~ 60°C ・Storage humidity: 20% ~ 80% |
| Dimensions | ・Package dimensions: 259 x 259 x 349 mm ・Package weight: 5.4 kg ・Camera: 142.7 x 153 x 182 mm/1.45 kg ・Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg ・Remote control: 200 x 50 x 21 mm/0.09 kg |

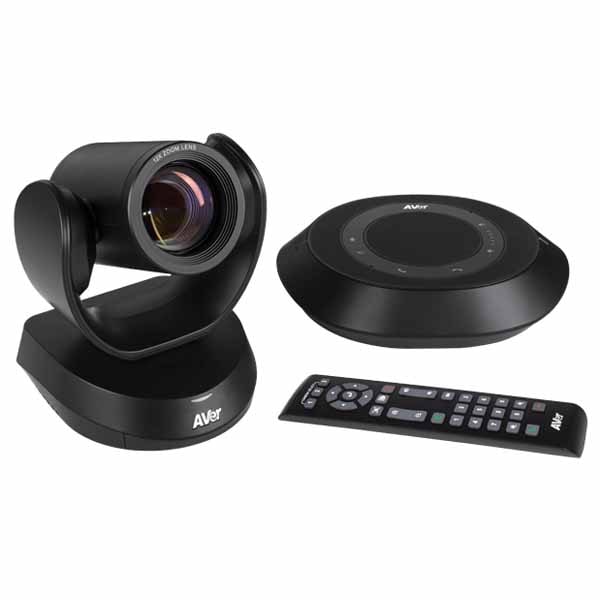

| Package Contents | ・VC520 Pro2 Camera ・VC520 Pro Speakerphone ・Remote control ・Power adapter ・Power cord (6 ft/1.8 m) ・USB2.0 type-B to type-A cable (16.5 ft/5 m) ・Camera to Speakerphone Cable (33ft/ 10m) ・3.5 mm aux cable (3 ft/0.9 m) ・QR code card ・Wall-mount bracket ・¼” tripod screw |
| USB | ・3.1 Gen 1 Type-B, backward compatible with USB 2.0 ・UVC (USB video class) 1.1 ・UAC (USB audio class) 1.0 |
| Control | ・IR remote control ・VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command) ・Remote side: VISCA over IP, IP (RJ45) ・UVC/UAC plug-and-play ・WebUI: Browser IP access via Chrome (does not support Internet Explorer) ・PTZApp 2 |
| Mount | ・Camera wall-mount bracket included ・Optional foldable TV mount ・Optional ceiling mount |
| System Requirements | ・Windows 7/10 ・Mac OS X 10.7 or higher ・Google Chromebook version 29.0.1547.70 or later ・Windows 10 Enterprise (IoT) LTSC (version 1809) |
| Hardware Specs | ・3.2 GHz Intel Core i5-4460 Processor or higher ・4 GB RAM or more ・USB 3.1 port, backward compatible with USB 2.0 port |
| Web page browser requirement | ・Chrome: version 76.x or above ・Firefox: version 69 or above ・IE: Not support |
| Power Supply | ・AC 100V ~ 240V, 50/60 Hz ・Consumption: 12V, 5A |
| Free Applications for Meeting Collaboration (Windows and Mac) |
EZManager 2: Camera Central Management software ・Remotely group FW/SW upgrades, control the camera, and configure settings PTZApp 2 ・Upgrade firmware automatically or manually ・Control camera ・Set parameters and adjust camera image ・Diagnose operating status ・View live video EZLive ・Real-time streaming / annotating / snapshots / video recording |
| Optional Accessories | ・Mini DIN8 to D-SUB9 RS232 adapter ・Expansion Speakerphone ・Expansion Microphone ・Foldable TV mount ・USB3.1 fiber extender 10m/20m/30m ・USB3.1 type-B to type-A cable 3m ・Ceiling mount |
| Compatible Applications | ・Zoom, Microsoft Teams, Skype for Business, Skype, Google Meet, Intel Unite, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting, TrueConf, Vidyo, Adobe Connect, Cisco Webex, Fuze, GoToMeeting, Microsoft Lync, vMix, WebRTC, Wirecast, XSplit **Specifications may vary depending on countries and are subject to change without notice. |
JAN：4719552126620
