23～42インチ（最大36.3kg）のフラットパネル用。中型ディスプレイの角度調整を簡単に操作できます。
[仕様]
LCDサイズ： 23″ – 42″ †
荷重範囲： ≦80 lbs、≦36.3 kg
昇降： –
チルト： 20°
パン： –
回転： –
VESA規格： MIS-D/E/F *
製品重量： 2.6 kg
製品梱包重量： 3.4 kg

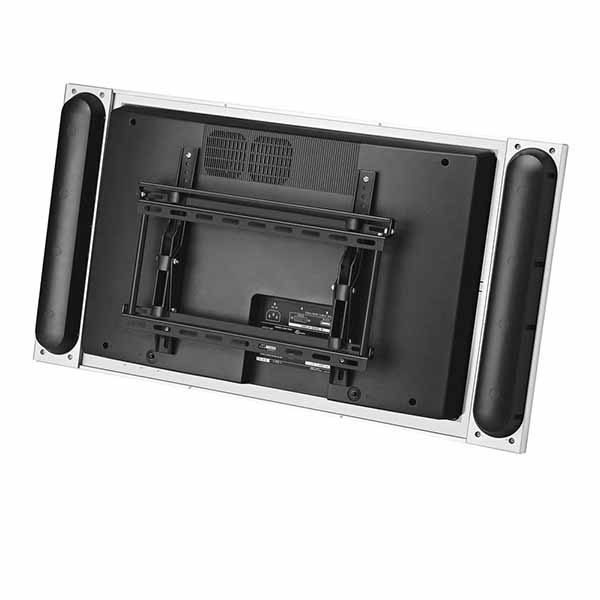

Description： Neo-Flex Tilting Wall Mount, VHD, Very Heavy Duty (black)
Includes wall plate, two (2) tilt rails, locking bar, installation and attachment hardware
† Screen Size is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity
* Mounting holes must fit within spacing range below: horizontal = 100 mm (min.) to 400 mm (max.); vertical = 100 mm (min.) to 300 mm (max.)
Profile off the wall = 1.9″ (49 mm)
UL certified and listed to UL Standard 2442. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
Full compliance with RoHS directive is in progress
JAN：698833017670
