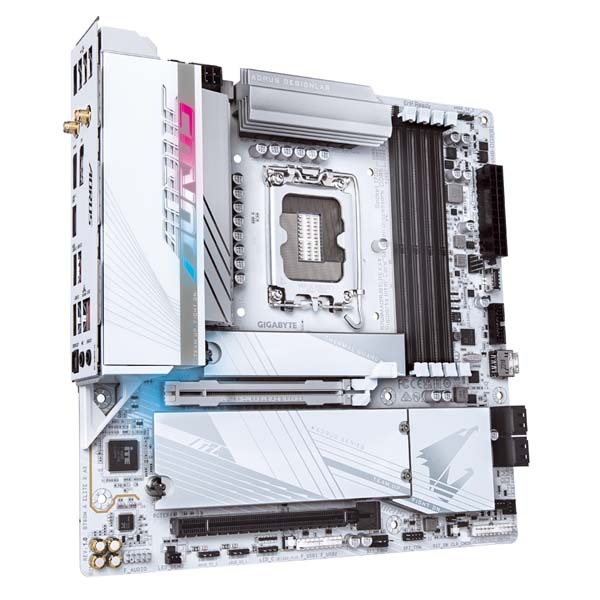

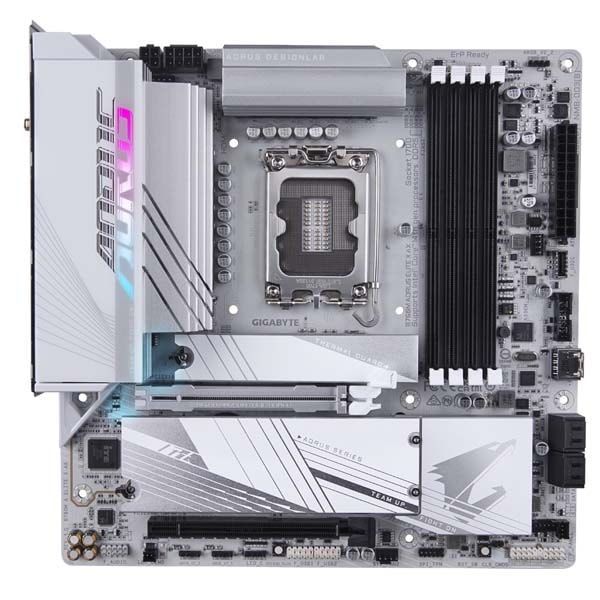

GIGABYTE B760M AORUS ELITE X AX
“X” は次世代を意味します！ AORUS “X” シリーズ マザーボードは、次世代 Intel Core プロセッサー向けに開発された最もパワフルなプラットフォームです。DDR5 メモリ対応、DIY フレンドリー設計、ユーザー中心で再設計
[特徴]
・第 14 & 13 世代 Intel Core プロセッサー対応
・14+1+1 デジタル Twin 電源フェーズ設計
・Dual Channel DDR5：4 スロット搭載 (XMP 対応)
・PCIe UD Slot X： 従来の約10倍強度を有する PCIe 5.0 x16 スロット
・EZ-Latch Click：ネジ不要 M.2 ヒートシンク
・EZ-Latch Plus：クイックリリース付 M.2 スロット
・Sensor Panel Link：オンボード・ビデオ・ポートにより、ケース内パネルのセットアップが容易
・UC BIOS：より使い易くなった UEFI BIOS 画面
・高速ストレージ：2*PCIe 4.0 x4 M.2 コネクタ
・優れた放熱性：VRM 用 Thermal Armor Advanced & M.2 Thermal Guard ヒートシンク
・高速ネットワーク：2.5 GbE 有線 LAN & Wi-Fi 6E
・充実した接続性：DP, フロント USB-C 10Gb/s, リア USB-C 20Gb/s
・オーディオ：高音質オーディオ・コンデンサ
[仕様]
| 対応ソケット | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors* L3 cache varies with CPU |
| 搭載チップセット | Intel B760 Express Chipset |
| メモリー | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory |
| 内蔵グラフィック | Integrated Graphics Processor-Intel HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
| オーディオ | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard Intel Wi-Fi 6E AX211 (For PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| 拡張スロット | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: |
| ストレージインターフェース | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support – 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 1 x USB 3.2 Gen 1 ports on the back panel – 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel |
| 内部入出力コネクタ | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

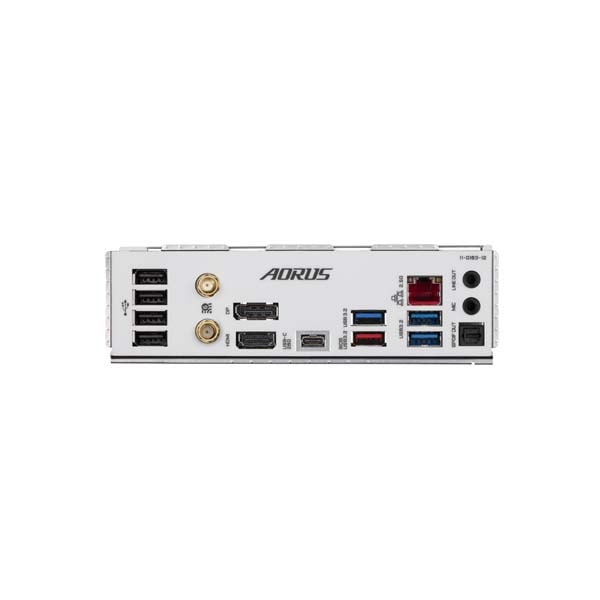

| バックパネルコネクタ | 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| I/O コントローラー | iTE I/O Controller Chip |
| ハードウェアモニター | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| 特徴 | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash |
| バンドルソフトウェア | Norton Internet Security (OEM version) LAN bandwidth management software |
| オペレーティングシステム | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| フォームファクター | m-ATX（244mm x 244mm） |
JAN：0889523039946
