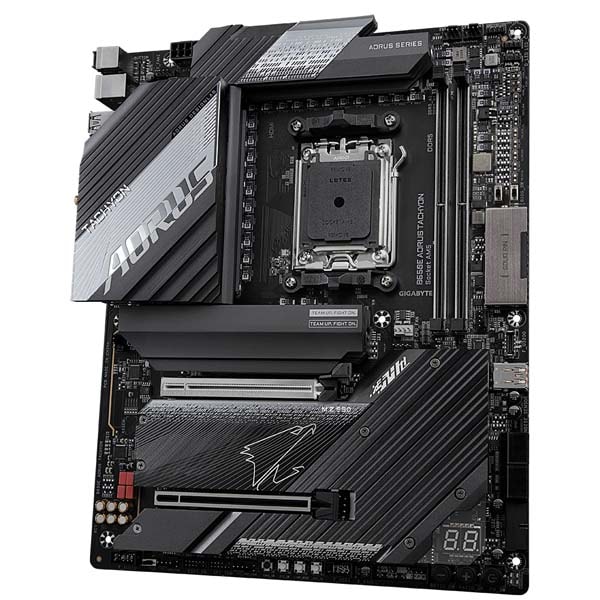

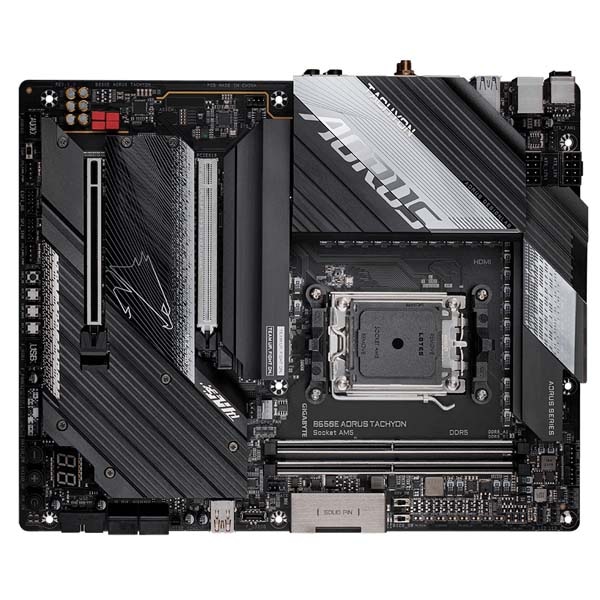

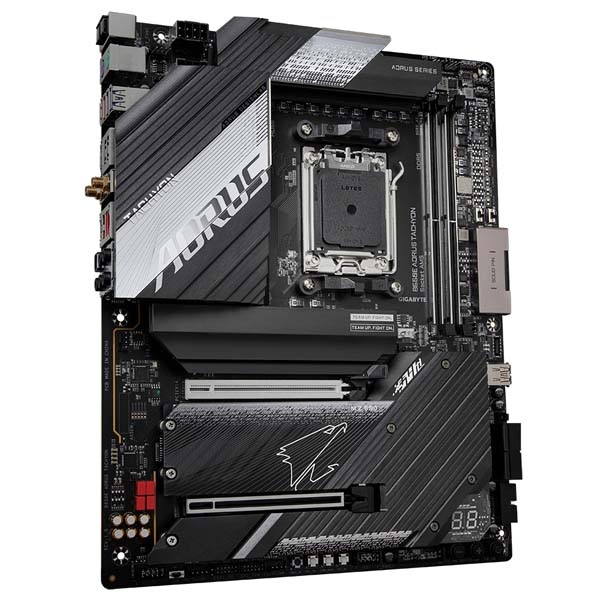

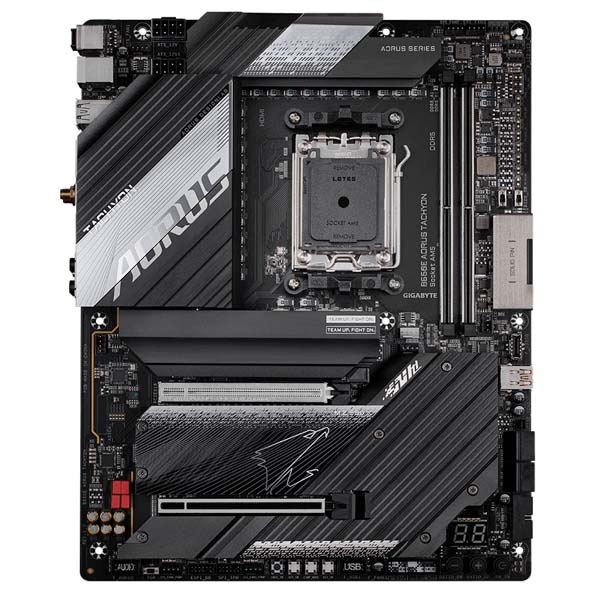

GIGABYTE GIGABYTE B650E AORUS TACHYON ATXマザーボード｜B650E AORUS TACHYON

1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

(Please refer “CPU Support List” for more information.)

1. AMD B650

1. Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2. 2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

1. Realtek® ALC1220-VB CODEC
   * The back panel line out jack supports DSD audio.
2. Support for DTS:X® Ultra
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out

1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

1. 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)
   * Actual support may vary by CPU.
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
   * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector

1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU, M2B_CPU)
   * Actual support may vary by CPU.

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset:

1. 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
2. 2 x USB 3.2 Gen 1 ports available through the internal USB header

Chipset+ASMedia® USB 3.2 Gen 2 Controller:

1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

1. 2 x USB 2.0/1.1 ports available through the internal USB header

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x CPU fan/water cooling pump header
5. 4 x system fan headers
6. 3 x system fan/water cooling pump headers
7. 1 x CPU cooler LED strip/RGB LED strip header
8. 1 x addressable LED strip header
9. 1 x RGB LED strip header
10. 3 x M.2 Socket 3 connectors
11. 4 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
15. 1 x USB 3.2 Gen 2 Type-A port
16. 1 x USB 3.2 Gen 1 header
17. 1 x USB 2.0/1.1 header
18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
19. 1 x noise detection header
20. 2 x temperature sensor headers
21. Voltage Measurement Points
22. 1 x power button (PW)
23. 1 x reset button (RST)
24. 1 x Clear CMOS button (CMOS)
25. 1 x Cold Reset button (RTY)
26. 1 x Protection Mode button (LIMP_MODE)
27. 1 x CPU Ratio Up button (CLK+)
28. x CPU Ratio Down button (CLK-)
29. 1 x BIOS switch (BIOS_SW)
30. 1 x OC Trigger switch (TGR_SW)
31. 1 x Reserved switch (RSV_SW)

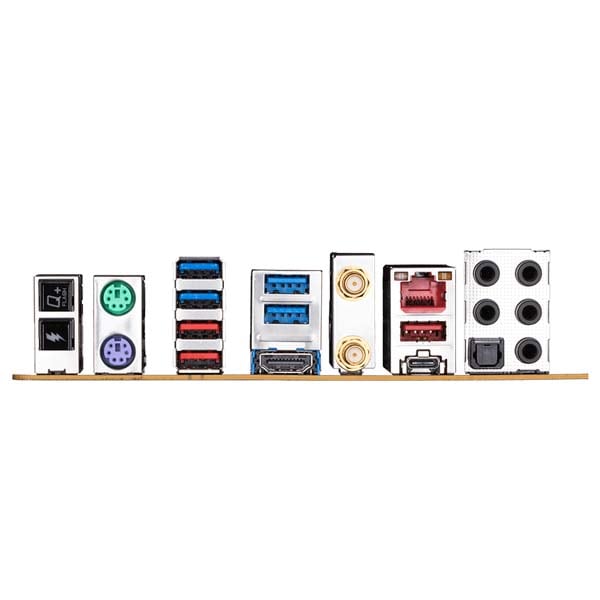

1. 1 x Q-Flash Plus button
2. 1 x OC Ignition button
3. 1 x PS/2 keyboard port
4. 1 x PS/2 mouse port
5. 2 x SMA antenna connectors (2T2R)
6. 1 x HDMI port
7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
8. 3 x USB 3.2 Gen 2 Type-A ports (red)
9. 4 x USB 3.2 Gen 1 ports
10. 1 x RJ-45 port
11. 1 x optical S/PDIF Out connector
12. 5 x audio jacks

1. iTE® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
7. Noise detection

1. 2 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus

1. Norton® Internet Security (OEM version)
2. LAN bandwidth management software

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

1. ATX Form Factor; 30.5cm x 24.4cm
