[特徴]
・4+1+2 フェーズ電源構成
・PCIe 4.0 x16 (EZ-Latch 付)
・M.2 Gen4 (EZ-Latch Plus によるネジ不要取付可能)
・大型MOSFET 電源用ヒートシンク
・Wi-Fi 6 (WIFI EZ-Plug 付)
・2.5 GbE 有線LAN, フロントUSB 3.2 Gen.1 Type-C
[仕様]
| 対応 CPU | LGA1851 socket: Support for Intel Core Ultra Processors (Go to GIGABYTE’s website for the latest CPU support list.) L3 cache varies with CPU |
| チップセット | Intel H810 Express Chipset |
| メモリー | Support for DDR5 6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| 映像出力端子 | Integrated Graphics Processor-Intel HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@60 Hz (Graphics specifications may vary depending on CPU support.) |
| オーディオ | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| 有線 LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| 無線 LAN | Realtek Wi-Fi 6 RTL8851BE – WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| 拡張スロット | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: |
| ストレージ端子 | Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB 端子 | Chipset: – 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 5 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| 内部入出力端子 | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper |

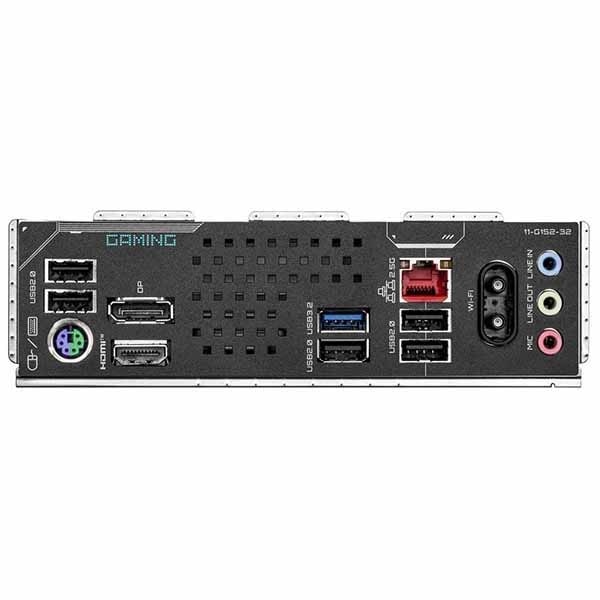

| バックパネル端子 | 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x USB 3.2 Gen 1 port 5 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU. |
| I/O コントローラー | iTE I/O Controller Chip |
| ハードウェア・モニター | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| 独自機能 | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash |
| バンドル・ソフトウェア | Norton Internet Security (OEM version) LAN bandwidth management software |
| 対応 OS | Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel NPU driver is only supported on Windows 11. |
| フォームファクター | Micro ATX Form Factor; 24.4cm x 21.5cm |
JAN：0889523047941
