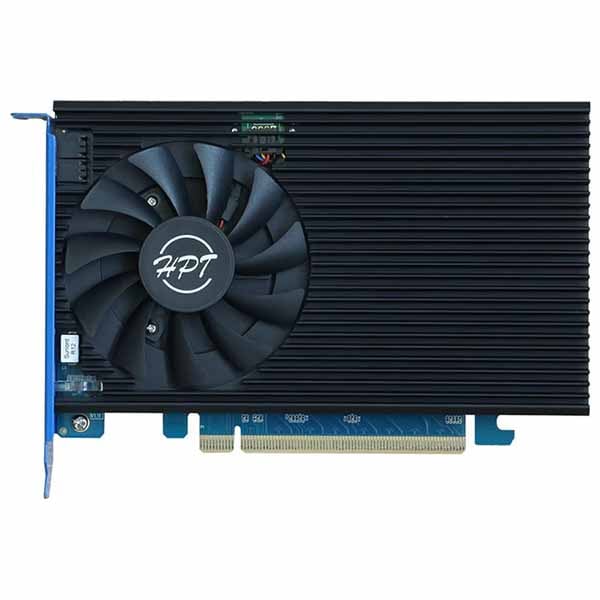

PCIe Gen5 x16接続の M.2 NVMeが最大４基搭載可能な Switch AICです。
[特徴]
・M.2 SSDを最大4基搭載可能（各portに対しｘ4 lane提供）
・M.2 Type 2242/2260/2280のSSDに対応
・PCI Express 5.0接続に対応
・WindowsやLinuxなど幅広い環境で利用可能
[仕様]
| Hardware Features | Bus Interface： PCIe 5.0 x16 Number of Channel / Port： 4 x NVMe Ports (Dedicated PCIe 5.0 x4 per port) Port Type： M.2 Data Transfer Rate： 64GB/s Number of devices： 4 SSD Form Factor： M.2 (2242, 2260, 2280) Synthetic Hierarchy： Yes Diagnostic LED Support： Disk Active, Disk Fail, Disk Present External Power Connector： N/A Toolless SSD Installation： Yes FRU Support： Yes Store VPD Data |
| Host CPU Architect Support | CPU Architect Support： X86 / ARM |
| Mechanical Features | Form Factor： Full-Height, Half-Length Card Dimensions： 167mm x 110mm Width： Single Width Card Weight： 0.80 lbs. PCIe Bracket： Full-Height ventilated bracket Heatsink： 1. One Big heatsink to cover all the board area 2. One 8010 Fan inside the Heatsink 3. the Adapter with Heatsink installed will not violate the PCIe Spec Cooling System： Heatsink with a 8010 Fan inside |
| Supported Systems | OS： All the Operating Systems with Native NVMe Driver Software Secure Boot： Yes |
| NVMe RAID Management | Management Suites： MPT Utility |
| Operating Environment | Working Temp： +5°C ~ + 55°C Storage Temp： -20°C ~ +80°C Operating Voltage： PCIe: 12V, 3.3V MTBF： 920,585 Hours |
| Kit Contents | Kit Contents： Rocket 1604A Switch AIC QIG Thermal pad: 70*90*0.75mm, K=8, Gray；V100；x1 Thermal pad: 70*90*1.5mm, K=3, Blue；V100；x1 Thermal pad: 70*90*1mm, K=8, Gray；V100; x1 4 x additional M.2 Rubber |
JAN：4537694371216
